What does kiln-carved mean on a glass bar top?

Kiln-carving is a process in which glass is fired in a kiln over a textured bed — in this case, a hand-worked sand surface — so the heat softens the glass and allows it to take on the precise contours of the texture beneath it. The result is a surface that is permanently part of the glass, not applied to it. The texture lives on the underside, meaning the top surface stays smooth and cleanable while the visual depth lives below, amplified by the LED light source behind it.

How is a glass bar top supported without drilling through the glass?

Three cantilevered steel brackets, anchored into the bar structure below, carry the full load of the glass surface. The glass rests on the bracket faces and is bonded with ultra-clear silicone — no hardware passes through the glass at any point. This eliminates stress concentration points, aesthetic intrusion, and future maintenance issues caused by through-drilling.

How does the LED lighting system work inside a kiln-carved glass bar top?

The Ambiance Machine™ RGB LED system mounts along the interior edge of the bar structure and fires light upward through the glass. The carved texture catches and scatters that light, creating a surface that appears to glow from within. The system operates across 8 million color combinations at 0–100% intensity, with programmable scenes and optional photocell trigger that activates the bar automatically at dusk.

What are the maintenance requirements for a kiln-carved glass bar top?

The surface requires no special treatment. The top surface is smooth polished glass — cleaning is the same as any glass surface, a damp cloth or standard glass cleaner. No sealing, no waxing, no periodic treatment required. Low-iron glass is non-porous, does not stain, and does not react with alcohol, citrus, or cleaning products.

How was the wave texture pattern developed for the Mantoloking glass bar top?

The texture was designed interactively — client and craftsman working from the bar's geometry and the room's flow to arrive at a pattern that felt native to the space. Once the bar base drawings were confirmed, multiple textural iterations were developed. The client selected the wave pattern, which was then scaled and anchor-pointed so the hand-worked sand bed in the kiln matched it as faithfully as the process allows.

How long does it take to fabricate and install a custom glass bar top?

Most custom glass bar top commissions require four to six weeks from signed contract to installation — enough runway to template the space, fire and finish the glass, and schedule the install. For urgent projects, we can compress that window significantly when shop capacity allows. The St. Petersburg waterfront home was contracted on November 22nd and installed December 10th — eighteen days start to finish, including a crane lift and full LED integration. That is not our standard timeline, but it demonstrates what's possible when a project is prioritized and executed without margin for error.

Can you fabricate an L-shaped glass bar top with a continuous texture across both segments?

Yes, and texture continuity across an L-shaped bar top is one of the more technically demanding aspects of this type of commission. On the Treasure Island project, we used the short return segment as the master stamp to press the matching texture into the long segment during the kiln firing. When the two pieces meet at the corner, the wave pattern flows as a single unbroken surface. If you are considering an L-shaped or U-shaped bar top, texture planning is part of our design process from the first conversation.

What is a dot-less LED strip and why does it matter for a glass bar top?

Standard LED strips emit light from individual diodes that are visible to the eye, which can create a spotty or segmented glow along the edge of the glass. Dot-less LED strips use a diffusion layer that blends each diode into the next, producing a smooth, continuous band of light with no visible hot spots. For illuminated glass bar tops where edge clarity is part of the visual effect, the difference is significant. All of our LED-lit bar tops use dot-less strips housed in a stainless steel channel for a finished, architectural appearance.

What does cantilevered bar top support mean, and how is it installed?

A cantilevered bar top is supported from below by brackets anchored into the bar structure, with no visible legs or supports at the outer edge. The glass appears to float. On this project, four custom brackets were set to position the glass surface at exactly 42 inches above the finished floor — standard bar height — while carrying the full weight of the 1.5-inch thick glass across the full span of the bar. Bracket count, placement, and depth into the bar structure are all calculated based on glass dimensions, thickness, and the specific load requirements of each installation.

Are glass bar tops suitable for waterfront and high-humidity environments?

Glass is one of the most durable and moisture-resistant surface materials available for residential bar top applications. Unlike wood, concrete, or stone, glass does not absorb moisture, will not warp or swell, and will not support mold or mildew growth. The LED components and stainless steel housing used in our illuminated bar tops are selected for long-term performance in Florida's coastal and high-humidity environments. The Treasure Island residence has direct Gulf exposure — the glass bar top is designed to perform there for decades.

How do I control the color and lighting on an illuminated glass bar top?

The RGB LED system on this bar top is controlled via Bluetooth from a smartphone app, allowing the homeowner to cycle through the full color spectrum, set a fixed color, adjust brightness, or program dynamic lighting sequences — all from their phone. No separate remote, no hardwired control panel. For whole-home automation integrations, we can discuss compatibility with specific smart home platforms during the design phase of your project.

Last updated on June 16th, 2026 at 07:37 am

Project Showcase · Treasure Island, Florida

Custom Illuminated Glass Bar Top — St. Petersburg Waterfront Home

L-shaped. Hand-textured. Cantilevered 42 inches above the finished floor. Crane-lifted into place. Eighteen days from contract to installed. The deadline was December 10th and it was not negotiable. We said yes.

Project Summary

The call came in on November 19th. The requirement: a large-format, L-shaped illuminated glass bar top — hand-textured, cantilevered, edge-lit in custom RGB — designed, fabricated, and installed inside an eighteen-day window. The destination was a waterfront residence on Treasure Island, steps from the Gulf, being finished for a group of friends traveling down from Michigan for the holidays.

The house remodel was nearly complete. The bar was the final statement. General contractor Chad Miltner of Gaard Inc. understood exactly what he was commissioning. The homeowner is Greg Magnan of Treasure Island, FL.

We met, measured, and drew. One piece of glass was already in stock — it became the short return segment. We used its surface texture as the master stamp to press the long segment in the kiln, ensuring that when the two pieces met at the corner, the wave pattern read as continuous. A bar top that looks like one thought rather than two separate pieces of glass.

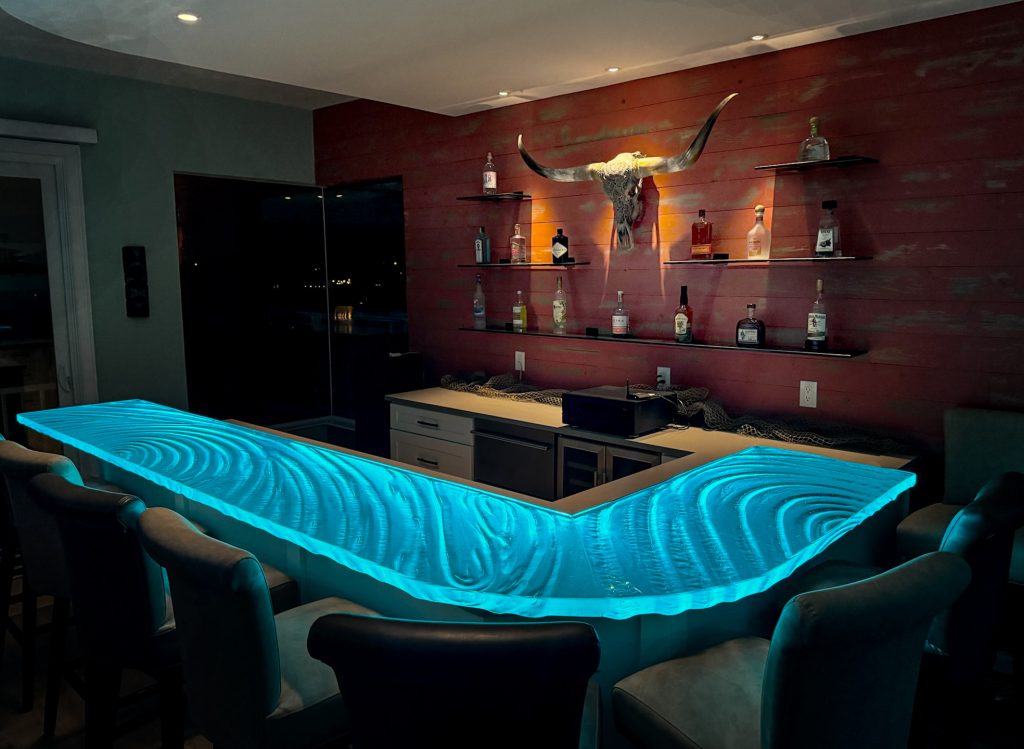

Custom L-shaped illuminated glass bar top glowing cyan — Treasure Island St. Petersburg Florida waterfront home — Downing Designs

L-Shaped Illuminated Glass Bar Top — Treasure Island, St. Petersburg FL — Downing Designs

Project Specifications

Fabrication & Installation Detail — Treasure Island, FL

Location	Waterfront residence — Treasure Island / St. Petersburg, Florida
Configuration	L-shaped bar top
Glass Thickness	1.5 inches
Primary Segment	118″ × 20″ — hand-textured
Return Segment	59″ × 20″ — matched texture, continuous pattern
Edge Treatment	Lens polish
Lighting	Ambiance Machine™ RGB LED — dot-less, stainless housing, Bluetooth — 177″ perimeter run
Support System	4 cantilevered brackets — 42″ AFF
Special Logistics	Crane lift — waterfront residence staircase clearance
GC	Chad Miltner — Gaard Inc.
Contract Date	November 22, 2025
Installation Date	December 10, 2025
Fabrication Window	18 days — start to installed

Eighteen days

Sequenced, hand-textured glass doesn't rush well. Each piece has to be carved, fired, cut, polished, LED-fitted, and bracketed to precise cantilevered height before it ever enters a space. Doing that in under three weeks — across two matched segments totaling over fourteen linear feet — required every tool in the shop and zero wasted days.

The layout called for a 118-inch primary run meeting a 59-inch return, both in 1.5-inch thick textured glass at 20 inches of depth. One piece was already in stock and became the short return. We used its surface texture as the master stamp to press the long segment in the kiln, ensuring that when the two pieces met at the corner, the wave pattern read as continuous. A bar top that looks like one thought rather than two separate pieces of glass.

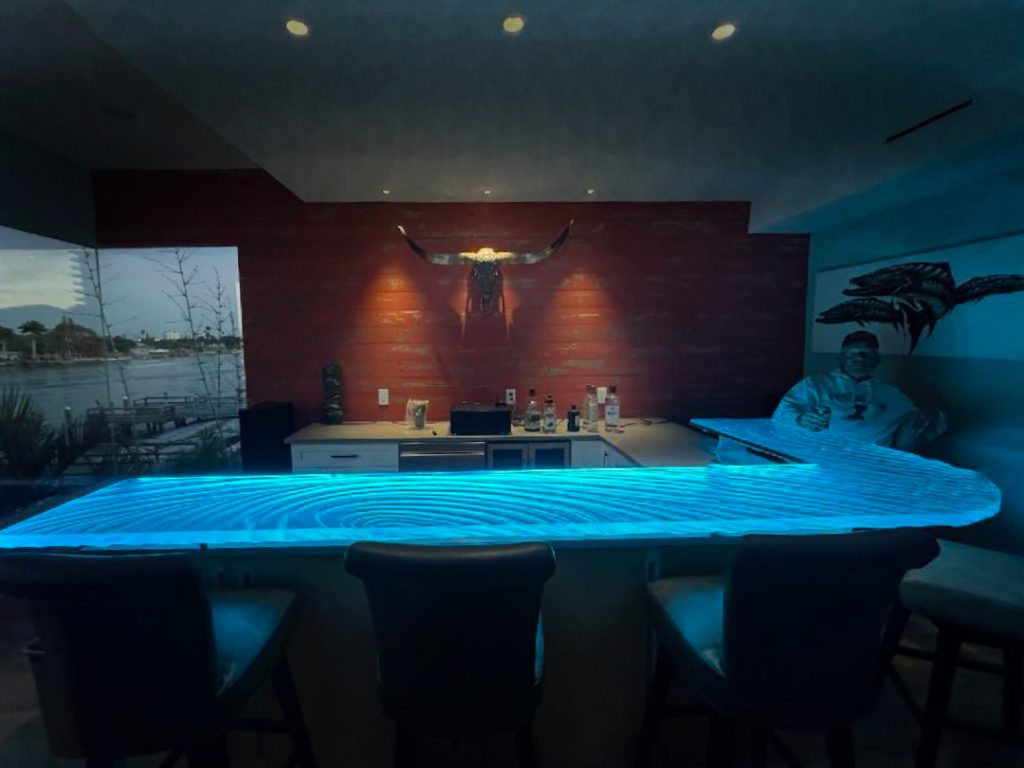

Custom L-shaped glass bar top Treasure Island Florida RGB LED illuminated — Downing Designs

L-Shaped RGB LED Glass Bar Top — Treasure Island FL — Downing Designs

A matter of trust

When Gaard's accounting office processed the deposit, they transferred the full project balance rather than the standard seventy-five percent draw. I called Chad the moment I saw it. He spoke with Greg. After a brief conversation about who I am and how I work, Greg decided no correction was necessary.

After installation was complete, Greg was back in Michigan but sent photographs of the finished bar. I asked if I could get inside to document it properly — a good bottle for his back bar, a proper photographic record for both of us. He said he wouldn't be there, but he'd leave a key. I texted him when I arrived and texted him when I left. No amount of revenue produces the feeling of a client who trusts you enough to hand you the keys to their home. We have a saying in the studio: nice things happen to nice people.

Client Review

★★★★★

"Jeff was great to work with start to finish. He met a very tough timeline and created something beautiful and stunning in the process. I highly recommend him."

Greg Magnan — Homeowner, Treasure Island, FL

Verified Houzz Review · April 2026

Can you fabricate an L-shaped glass bar top with continuous texture across both segments?

Yes — and texture continuity across an L-shaped bar top is one of the more technically demanding aspects of this type of commission. On the Treasure Island project, we used the short return segment as the master stamp to press the matching texture into the long segment during kiln firing. When the two pieces meet at the corner, the wave pattern flows as a single unbroken surface.

If you are considering an L-shaped or U-shaped bar top, texture planning is part of our design process from the first conversation — not something figured out at the kiln.

Can a large glass bar top be installed in a home with a tight staircase?

It can — but it often requires creative logistics. On the Treasure Island installation, the interior staircase radius was too tight to carry the glass safely by hand. We coordinated a crane lift to bring the pieces up and over to the correct level of the home.

This kind of logistical planning is part of our pre-installation process. We assess access, clearances, and structural considerations before installation day so there are no surprises. If your home has restricted access, that conversation happens early.

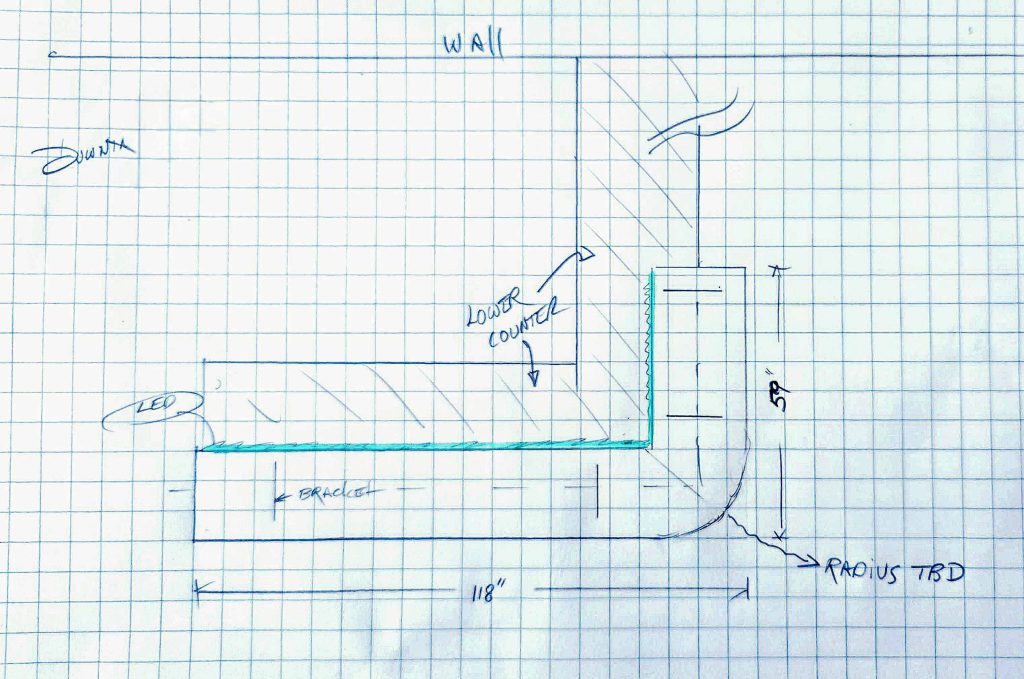

Hand-drawn field sketch for L-shaped glass bar top Treasure Island St. Petersburg Florida — Downing Designs template November 2025

Original Field Sketch — November 19, 2025 — Template confirmed layout, radius, and bracket positions
