What does kiln-carved mean on a glass bar top?

Kiln-carving is a process in which glass is fired in a kiln over a textured bed — in this case, a hand-worked sand surface — so the heat softens the glass and allows it to take on the precise contours of the texture beneath it. The result is a surface that is permanently part of the glass, not applied to it. The texture lives on the underside, meaning the top surface stays smooth and cleanable while the visual depth lives below, amplified by the LED light source behind it.

How is a glass bar top supported without drilling through the glass?

Three cantilevered steel brackets, anchored into the bar structure below, carry the full load of the glass surface. The glass rests on the bracket faces and is bonded with ultra-clear silicone — no hardware passes through the glass at any point. This eliminates stress concentration points, aesthetic intrusion, and future maintenance issues caused by through-drilling.

How does the LED lighting system work inside a kiln-carved glass bar top?

The Ambiance Machine™ RGB LED system mounts along the interior edge of the bar structure and fires light upward through the glass. The carved texture catches and scatters that light, creating a surface that appears to glow from within. The system operates across 8 million color combinations at 0–100% intensity, with programmable scenes and optional photocell trigger that activates the bar automatically at dusk.

What are the maintenance requirements for a kiln-carved glass bar top?

The surface requires no special treatment. The top surface is smooth polished glass — cleaning is the same as any glass surface, a damp cloth or standard glass cleaner. No sealing, no waxing, no periodic treatment required. Low-iron glass is non-porous, does not stain, and does not react with alcohol, citrus, or cleaning products.

How was the wave texture pattern developed for the Mantoloking glass bar top?

The texture was designed interactively — client and craftsman working from the bar's geometry and the room's flow to arrive at a pattern that felt native to the space. Once the bar base drawings were confirmed, multiple textural iterations were developed. The client selected the wave pattern, which was then scaled and anchor-pointed so the hand-worked sand bed in the kiln matched it as faithfully as the process allows.

What materials were used in this glass bar top?

The installation used 1.5-inch thick low-iron textured glass with polished edges and a hand-textured underside, back-painted with a permanent catalyzed urethane finish.

Does this project include LED lighting?

Yes. An integrated RGB LED Ambiance Machine™ system was installed, including a separately controlled LED strip for the sink area.

How was the glass bar top secured?

The glass was installed without drilled holes, secured using ultra-clear silicone and gravity over a leveled knee-wall support.

Where was this project installed?

This custom glass bar top was installed at Ocean Reef Club in Key Largo, Florida.

Miami Glass Bar Top and Countertop

Last updated on June 27th, 2026 at 11:53 am

Project Showcase · Key Largo, Florida

Some rooms announce themselves. This one waits. Dark cabinetry, layered surfaces, orchids on every counter — the kind of residence where the design has already done the work before a single guest arrives. The only question left was what sits on the bar. The answer: 126 inches of illuminated kiln-formed glass, fabricated in Tampa, installed at one of South Florida's most exclusive private clubs.

Project Summary

This custom glass bar top and countertop installation was designed and fabricated by Downing Designs, Tampa, FL for a luxury home at Ocean Reef Club, Key Largo, Florida — one of the most exclusive private residential clubs in the United States. Orchids planted everywhere. The kind of property where the glass has to be the best thing in the room, and the room is already exceptional.

The installation was completed in partnership with CM Glass, Miami as installation partner. The result is a 126-inch illuminated glass high bar with the Ambiance Machine™ RGB LED system and a lower 26-inch × 85-inch glass countertop with integrated top-mount sink — both in 1.5-inch low-iron kiln-formed glass with the hand-carved Suave wave texture.

Both surfaces are back-painted opaque metallic silver — a permanent two-part catalyzed urethane finish that eliminates substrate visibility, conceals the LED mounting, and creates a seamless illuminated surface when the Ambiance Machine™ is active.

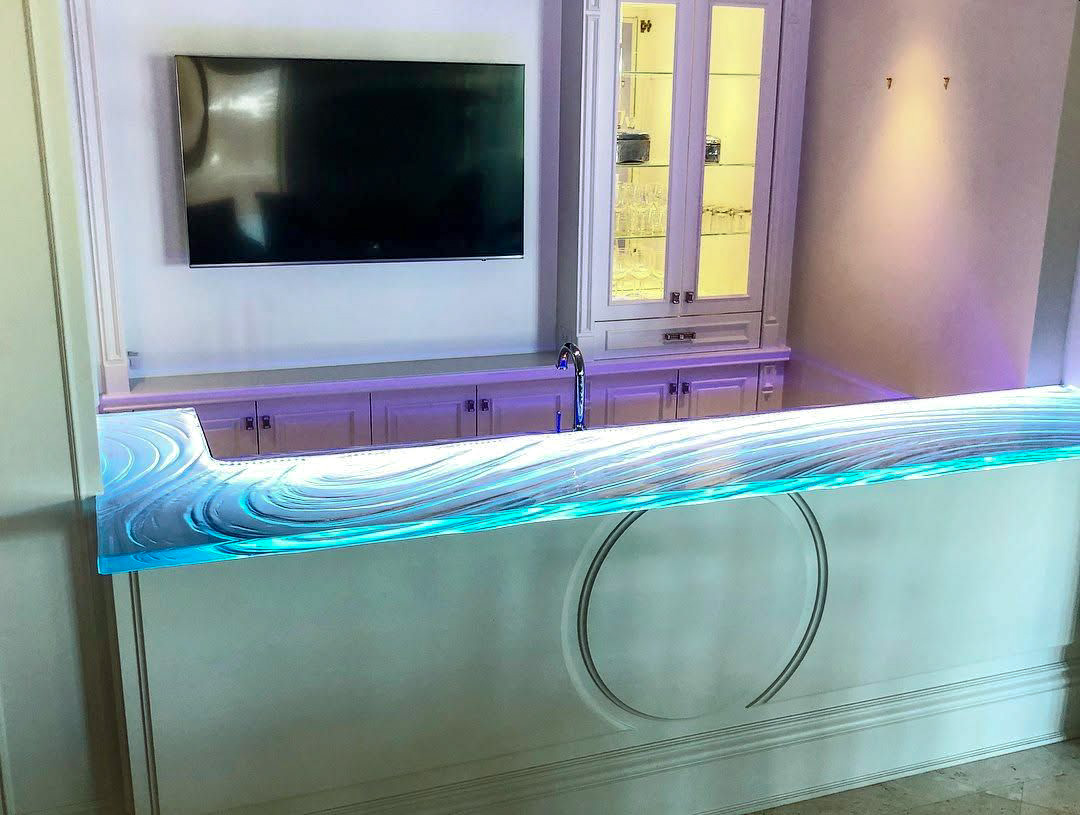

Custom illuminated glass high bar and lower countertop with LED — Ocean Reef Club Key Largo Florida — Downing Designs Tampa

Custom illuminated glass high bar and lower countertop with LED — Ocean Reef Club Key Largo Fl — Downing Designs Tampa

Custom Illuminated Glass Bar Top — Ocean Reef Club, Key Largo FL — Downing Designs

Project Specifications

Fabrication & Installation Detail — Ocean Reef Club, Key Largo FL

Project Type	Custom glass high bar top and lower glass countertop with integrated sink
Location	Ocean Reef Club — Key Largo, Florida
High Bar Dimensions	126″ × 20″ × 1.5″ thick
Lower Countertop	26″ × 85″ with integrated top-mount sink cutout
Glass	1.5″ low-iron kiln-formed glass
Texture	Hand-carved wave (Suave) — flow designed to sync between both surfaces
Back Paint	Opaque metallic silver — permanent two-part catalyzed urethane
Hardware	Zero holes drilled through glass — secured via ultra-clear silicone and gravity
Lighting	Ambiance Machine™ RGB LED — rear and front edge, independently controlled
Installation Partner	CM Glass — Miami, Florida
Timeline	10 weeks — design through installation

The design challenge: textures that celebrate and sync

Both surfaces — the high bar and the lower countertop — use the hand-carved Suave wave texture, designed so the flow of the pattern reads between them as part of the same composition. The bar top is the elevated statement piece. The lower countertop is the worksurface. But the texture connects them, so the eye reads the whole installation as a unified field rather than two separate objects.

The Ambiance Machine™ systems on each surface are independently controlled — allowing the lower countertop sink area to be lit at a different intensity than the high bar, which is critical when the high bar LED is set to 100% and the sink area needs to stay readable as a functional surface. A small secondary LED strip under the top-mounted sink front edge — set to approximately 10% of the rear LED intensity — balances the composition exactly.

Partner Spotlight: CM Glass, Miami

CM Glass is Downing Designs' installation partner for South Florida projects where on-the-ground precision matters as much as what's coming off the truck. For a commission at a property like Ocean Reef Club — where access logistics, installation windows, and client expectations are exacting — a trusted regional partner is the difference between a flawless result and a compromised one.

Fabrication, design, and quality control remain entirely in-house at the Downing Designs studio in Tampa. Every panel arrives installation-ready. CM Glass handles the final placement with the same standard the glass was built to.

Why back-paint glass bar tops with metallic silver?

Back-painting serves two purposes simultaneously. It conceals whatever is behind or beneath the glass — cabinet contents, LED mounting hardware, substrate imperfections — eliminating all visual distractions from the illuminated surface above. And it creates a reflective layer that dramatically amplifies the LED output, bouncing light back through the glass and intensifying the glow from within.

The metallic silver formula used at Downing Designs is a permanent two-part catalyzed urethane — not a spray paint, not a vinyl film. It bonds chemically to the glass and will not peel, crack, or separate under the heat generated by the LED system over years of continuous use.

Does Downing Designs fabricate and install custom glass bar tops in Key Largo, Miami, and South Florida?

Yes. Downing Designs fabricates all installations in our 10,000 sq ft Tampa studio and installs throughout South Florida — Key Largo, Miami, Fort Lauderdale, Boca Raton, Palm Beach, and the surrounding coastal communities.

For South Florida projects, we work with regional installation partners including CM Glass Miami when project scope or logistics benefit from local support. Fabrication, design, and quality control remain entirely in-house at our Tampa studio. All finished surfaces ship from Tampa and arrive installation-ready.
