What does kiln-carved mean on a glass bar top?

Kiln-carving is a process in which glass is fired in a kiln over a textured bed — in this case, a hand-worked sand surface — so the heat softens the glass and allows it to take on the precise contours of the texture beneath it. The result is a surface that is permanently part of the glass, not applied to it. The texture lives on the underside, meaning the top surface stays smooth and cleanable while the visual depth lives below, amplified by the LED light source behind it.

How is a glass bar top supported without drilling through the glass?

Three cantilevered steel brackets, anchored into the bar structure below, carry the full load of the glass surface. The glass rests on the bracket faces and is bonded with ultra-clear silicone — no hardware passes through the glass at any point. This eliminates stress concentration points, aesthetic intrusion, and future maintenance issues caused by through-drilling.

How does the LED lighting system work inside a kiln-carved glass bar top?

The Ambiance Machine™ RGB LED system mounts along the interior edge of the bar structure and fires light upward through the glass. The carved texture catches and scatters that light, creating a surface that appears to glow from within. The system operates across 8 million color combinations at 0–100% intensity, with programmable scenes and optional photocell trigger that activates the bar automatically at dusk.

What are the maintenance requirements for a kiln-carved glass bar top?

The surface requires no special treatment. The top surface is smooth polished glass — cleaning is the same as any glass surface, a damp cloth or standard glass cleaner. No sealing, no waxing, no periodic treatment required. Low-iron glass is non-porous, does not stain, and does not react with alcohol, citrus, or cleaning products.

How was the wave texture pattern developed for the Mantoloking glass bar top?

The texture was designed interactively — client and craftsman working from the bar's geometry and the room's flow to arrive at a pattern that felt native to the space. Once the bar base drawings were confirmed, multiple textural iterations were developed. The client selected the wave pattern, which was then scaled and anchor-pointed so the hand-worked sand bed in the kiln matched it as faithfully as the process allows.

St Petersburg, Florida L-Shaped Glass Bar Top in Modern Home

Last updated on June 17th, 2026 at 05:24 am

Custom L-shaped textured glass bar top designed and installed in St Petersburg Florida by Downing Designs.

This custom L-Shaped Glass Bar Top installation was designed and fabricated by Downing Designs for a modern private residence in St Petersburg, Florida.

Our 1.5” thick low-iron textured glass bar top was engineered to sit directly on the knee wall and secured with through-bolted low-profile stainless caps. The bar measures 130″ x 120″ with a 20″ depth and a full 1.5″ glass thickness.

The installation creates a sleek architectural look that preserves the open floor plan while making the bar appear to float — especially in the evening when illuminated. This is a signature approach of our Ambiance Machine™ design process.

If glass bar tops are choreography, this installation is a very capable dance partner. The flow of the texture was designed to guide movement from the entry into the open-plan kitchen and living area.

This textured glass bar top is one of my favorites. It delivers great theater. Integrated lighting and sculpted glass textures create a natural gathering point and a central magnet for guests.

Project Overview

Project Type: Custom Glass High Bar Top
Texture: Hand-Carved Wave Pattern Designed to Sync with Room Flow
Location: St Petersburg, Florida
Timeline: 9 Weeks (Design to Installation)
Designer: Downing Designs Glass Bar Tops

Dimensions

Long Section: 130” x 20” x 1.5” thick
Short Section: 120” x 20” x 1.5” thick
Texture pattern custom designed with the client

Materials & Finish

1.5” Thick Low-Iron Glass Countertop
Hand-Polished Edges
Hand-Textured Underside
Back-Painted Glass Finish
Ambiance Machine™ RGB LED system integrated along the interior edge

Support

(8) Low-profile stainless caps securing the glass surface
(8) Precision drilled holes through the glass
No underside brackets used

Lighting

An RGB LED Ambiance Machine™ lighting system was integrated into the bar top to illuminate the textured glass from within.

Design Challenge

The design challenge was connecting the carved texture across both sections as the bar turns the L-shaped corner.

To accomplish this, Downing Designs creates the first glass slab and then places both pieces into the kiln in sequence so the texture pattern flows continuously across the seam.

L shaped glass bar top layout in St Petersburg Florida

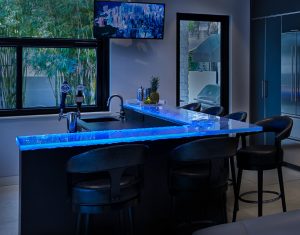

Floating glass bar countertop in St Petersburg home

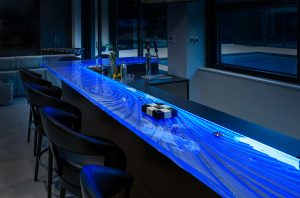

St Petersburg glass bar top with LED lighting in modern home

St Petersburg glass bar top with integrated LED lighting

Floating glass bar top installation

Sequenced seam textured glass bar top by Downing Designs

Sequenced seam detail in L-shaped glass bar top

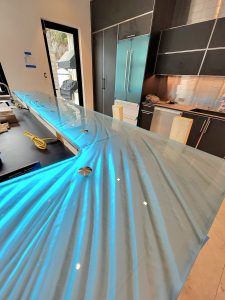

Custom L-shaped glass bar top installation

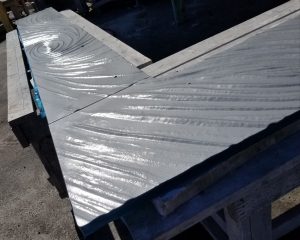

Textured underside of L shaped glass bar top showing sequenced pattern

Underside texture showing sequenced pattern across seam

The Solution

The bar top was first drawn in scale to determine the directional flow of the texture through the room.

The kiln bed was carved to create the wave pattern and the 1.5” low-iron glass was kiln-formed. After annealing, the glass was cut to dimension, hand-polished, and fitted with our precision-fabricated Ambiance Machine™ lighting system.

The finished installation becomes the gravitational center of the home — hosting cocktail parties, dinner service, and everyday workspace.

Design Idea

The low-profile caps were selected instead of brackets because the client wanted a completely clean underside. We worked closely with the bar base fabricator to ensure the wood structure was engineered to remain absolutely rigid.

For more information about selecting glass countertops, visit our Glass Countertop Buying Guide.

Through our proprietary Ambiance Machine™ design process, Jeff Downing engineers the feeling first — then designs the form and light to create a specific atmospheric result.

Feel it. Form it. Light it.

See more installations on our Glass Bar Tops gallery.

Areas We Serve

Tampa • St Petersburg • Sarasota • Fort Myers • Naples • Miami • Marco Island • Fort Lauderdale • Boca Raton • West Palm Beach

View more custom installations on our Projects page.

Frequently Asked Questions

What makes Downing Designs textured glass unique?

Downing Designs sequences textures across multiple glass panels so the carved pattern flows continuously across seams, creating the appearance of a single sculpted piece of glass.

How are glass bar tops secured to a wood base?

Low-profile stainless caps secure the glass through precision drilled holes. This creates a minimalist support system while keeping the glass bar top extremely stable.

How strong must the wood base be?

The supporting base must be extremely rigid and built as a single structural unit using strong joinery, long fasteners, and double top plates to prevent flexing over time.
