Last updated on November 11th, 2026 at 04:25 pm

Project Showcase · Naples, Collier County, Florida

Custom Curved Glass Bar Top: a 126-inch arc of light in a Naples wine room.

Floating on aircraft-aluminum cantilever brackets. Zero holes through the glass. A hurricane eye centered in the texture and RGB light running the full arc. The gravitational center of every after-hours party.

126″Continuous arc
1.5″Low-iron glass
2Cantilever brackets
0Holes drilled
9Weeks, design to install
Project at a Glance

Downing Designs designed, fabricated and installed a 126 x 20 x 1.5 inch arced glass high bar in hand-textured low-iron glass for a luxury home in Naples, Collier County, Florida. It floats on two 1-inch aircraft-aluminum cantilever brackets with zero holes drilled through the glass, carries a wave texture with an off-center hurricane eye, and is lit end to end by an Ambiance Machine™ RGB LED in a stainless channel hand-formed to the arc. Design to installation: 9 weeks.

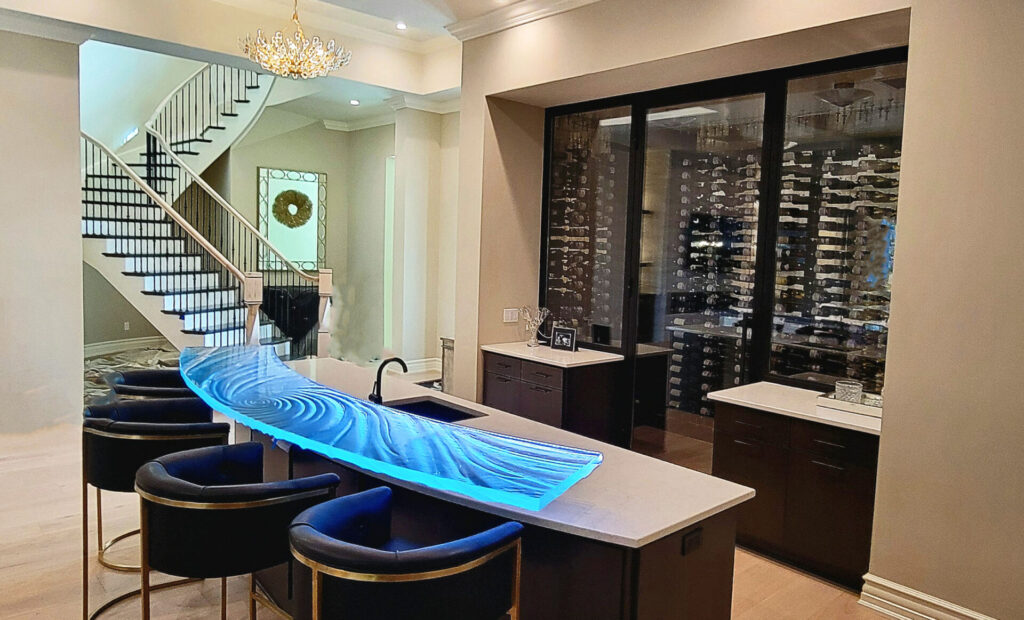

Arced glass high bar with LED lighting and custom cantilever supports in front of a wine room in a Naples, Florida luxury home
Naples, Collier County FL · 126-inch arc in front of the wine room

The brief

A sleek, modern glass bar top with texture that flows within the arc and invites guests in from either end, set in front of a beautiful wine room as the centerpiece of the home’s entertaining space.

The bar crowns a curved lower island, so the glass had to follow that radius exactly. It was templated on site, not taken from a floor plan, and every part of the build followed the confirmed arc: the kiln mold, the edge, the LED channel and the bracket positions.

Texture and structure, designed together

The hurricane eye is the deepest carving and the first thing the eye finds. Centered, it would have landed exactly where a bracket needed to go. So we moved it slightly off-center. The deepest carving sits where it reads best, and the bracket sits where the physics wants it. Neither compromises the other.

Project specifications

Detail Naples, Collier County, FL
Project type Custom curved glass high bar, floating on cantilever brackets
Location Private luxury residence, Naples, Collier County, Florida
Dimensions 126 x 20 x 1.5 in, arced to match the lower island countertop
Glass 1.5 in low-iron, hand-textured underside, polished edge
Texture Wave with hurricane eye, off-center by design for deeper carving at the focal point
Support system 2 aircraft-aluminum cantilever standoffs, 1 in thick, set 20 in inboard from each end
Hardware Zero holes through the glass; secured with ultra-clear silicone
LED channel Stainless C-channel, hand-formed on an English wheel to the arc radius
Lighting Ambiance Machine™ RGB LED, full-arc run, seamless illumination
Timeline 9 weeks, design through installation

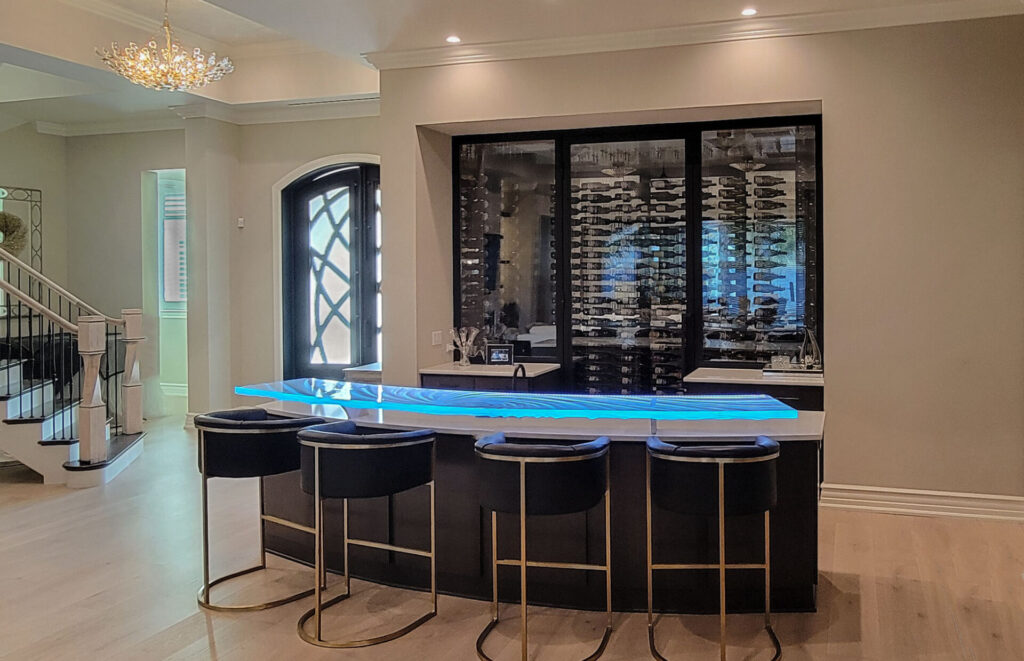

Arced glass high bar floating on concealed cantilever supports with no hardware on the glass surface, Naples, Florida
Floating on two brackets · nothing on the surface

Light that bends with the glass

Standard LED channels are straight. Put a straight channel under a curve and the light drifts away from the edge, leaving hot spots and dark sections exactly where the arc is most visible.

For this bar, the stainless C-channel was hand-formed on an English wheel, a metalworking tool that curves sheet metal a little at a time without distorting its profile. The channel holds the same distance to the glass edge across all 126 inches. The light is seamless, with no hot spots and no dark corners. You won’t find that in a supplier catalog. It was made in our Tampa shop for this one piece of glass.

The bracket method behind this bar, along with overhang rules and why we never drill through the glass, is in our cantilevered glass bar top engineering guide.

Naples, Florida arced glass high bar with LED lighting, 1.5 inches thick
The full arc, lit · Ambiance Machine™

Questions about this project

Why is the hurricane eye off-center?

The hurricane eye is the deepest kiln carving and the focal point people find first. Centering it would have put it directly where a cantilever bracket needed to go. Moving it slightly off-center gave the deepest carving the best optical position and kept the bracket structurally correct, without either one compromising the other.

How is a curved LED channel made for an arced glass bar top?

A straight channel drifts away from a curved glass edge and lights unevenly. For this Naples bar, the stainless C-channel was hand-formed on an English wheel to follow the arc exactly, keeping the light source the same distance from the edge across the full 126-inch run. The result is seamless illumination with no hot spots.

How is an arced glass bar top supported without drilling the glass?

Two 1-inch aircraft-aluminum cantilever standoffs, set 20 inches inboard from each end, carry the glass from below. Nothing passes through it: the glass is secured with ultra-clear silicone, so the surface is completely clear of hardware.

How long does a custom curved glass bar top take?

This 126-inch arced bar took 9 weeks from design through installation, including on-site templating of the radius, kiln forming, the hand-formed LED channel and installation. We confirm a firm schedule at contract.

Does Downing Designs make custom glass bar tops for Naples and Collier County homes?

Yes. Naples is in our primary Gulf Coast service corridor, and we have fabricated and installed glass bar tops, countertops and architectural glass for homes in Naples, Bonita Springs, Marco Island and the rest of Collier County. Consultations usually start by phone or video. We travel to the home for templating and return for installation.
